KOPPENS BV TD 600 - MOBILE TEMPURA DIPPER

2345

Koppens BV mobile tempura dipper, model: TD 600, ID No. 2345

Condition: Used / Secondhand inspected machinery

Voltage / Frequency: 380 V, 3 Ph, 50 Hz

Installed power: 0.5 kW

Machine weight: 200 kg

Conveyor belt: Stainless steel wire mesh belt (s/s)

Belt width: 600 mm

Total dimensions: 2500 x 800 x 1450 mm

System: Continuous immersion dipping for liquid batter and tempura

KOPPENS BV TD 600 - MOBILE TEMPURA DIPPER

Ver productos

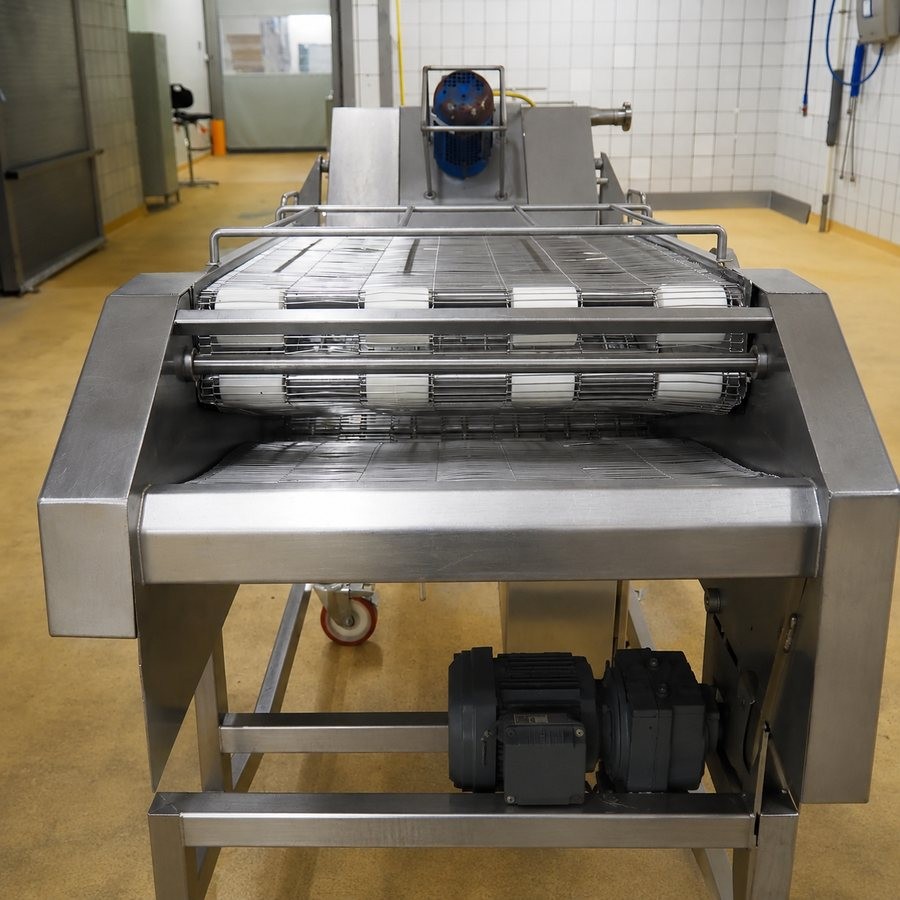

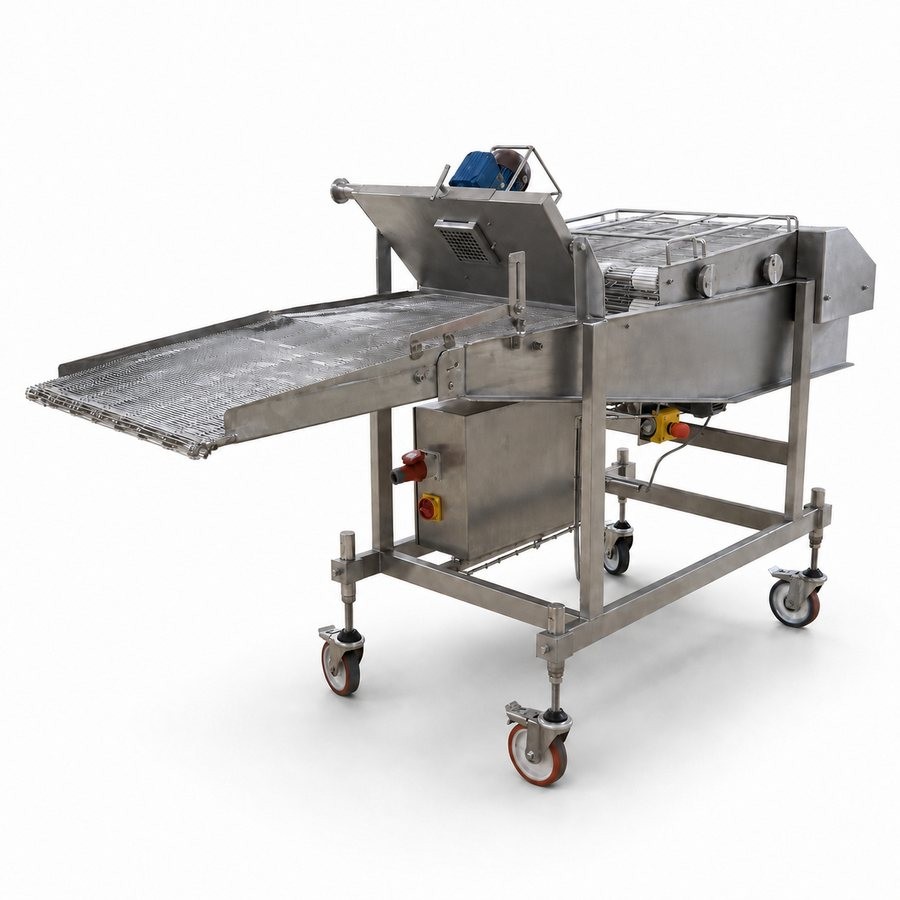

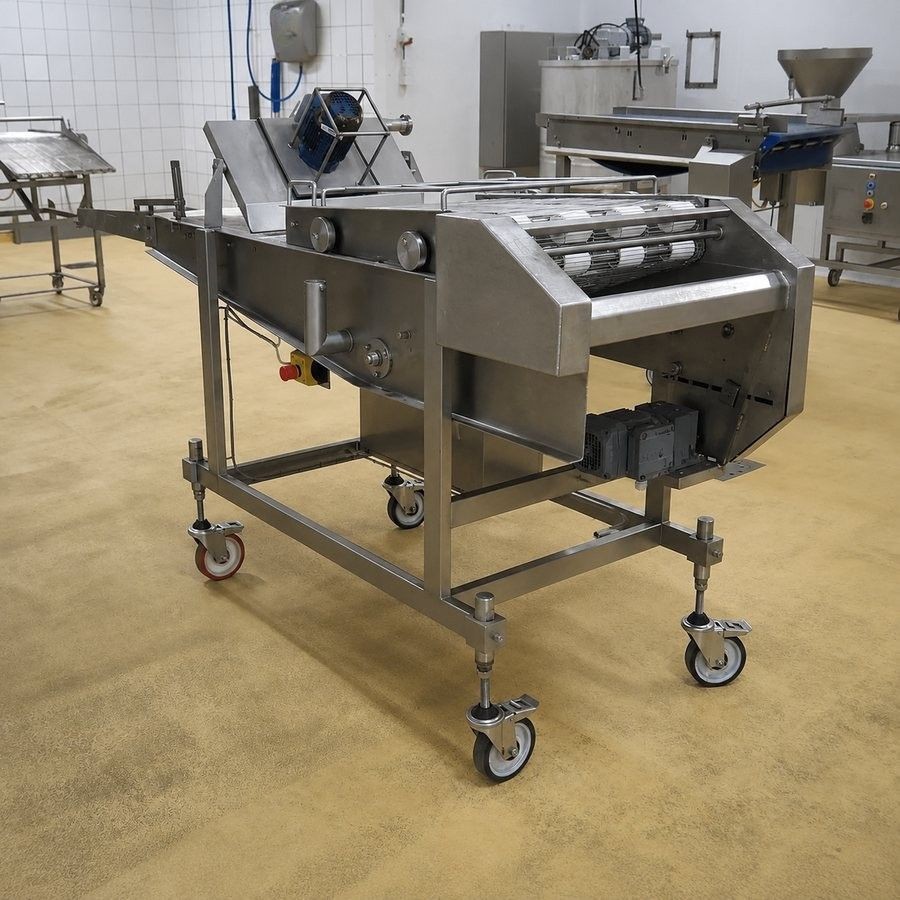

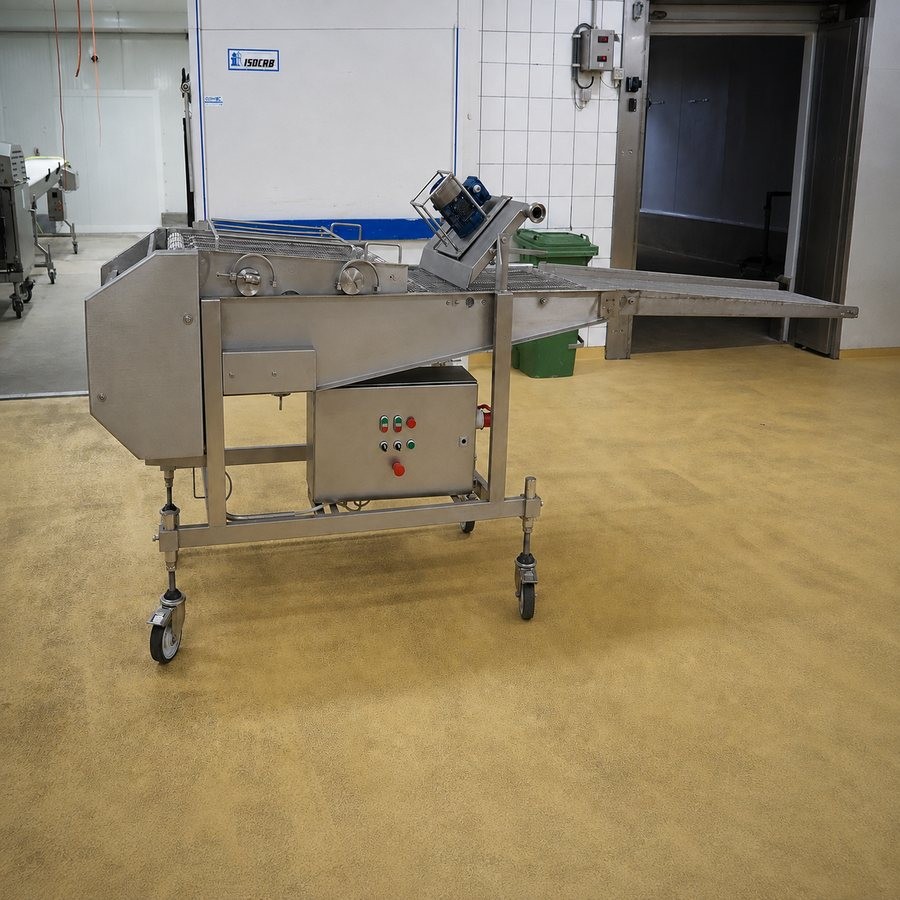

Koppens BV TD 600 - Mobile Tempura Dipper (Ref. 2345)

Industrial mobile dip-coating machine for tempura and liquid batters in food processing lines

Secondhand industrial mobile dip-coating machine Koppens Machinefabriek B.V. model TD 600 (Ref. 2345). Specifically engineered for the homogeneous and continuous application of liquid batters, light doughs, and tempura across a broad spectrum of food products. Equipped with a 600 mm wide stainless steel wire mesh conveyor belt, the Koppens TD 600 delivers consistent 360° coverage, while its exit slope allows excess batter to drain back into the reservoir tank, guaranteeing a professional finish without product waste.

Completely constructed from food-grade stainless steel according to strict European sanitary standards, this unit stands out for its mobility on heavy-duty lockable castors and quick sanitation. It is an ideal versatile solution for plants that require flexible reallocation between processing lines, streamlining workflows in medium to high-throughput facilities prior to continuous breading, coating, or frying.

Main Technical Features

■ Leading Manufacturer: Koppens Machinefabriek B.V. (Bakel, The Netherlands).
■ Continuous Dip Coating: Product is submerged smoothly into the liquid bath, ensuring flawless, all-around coverage.

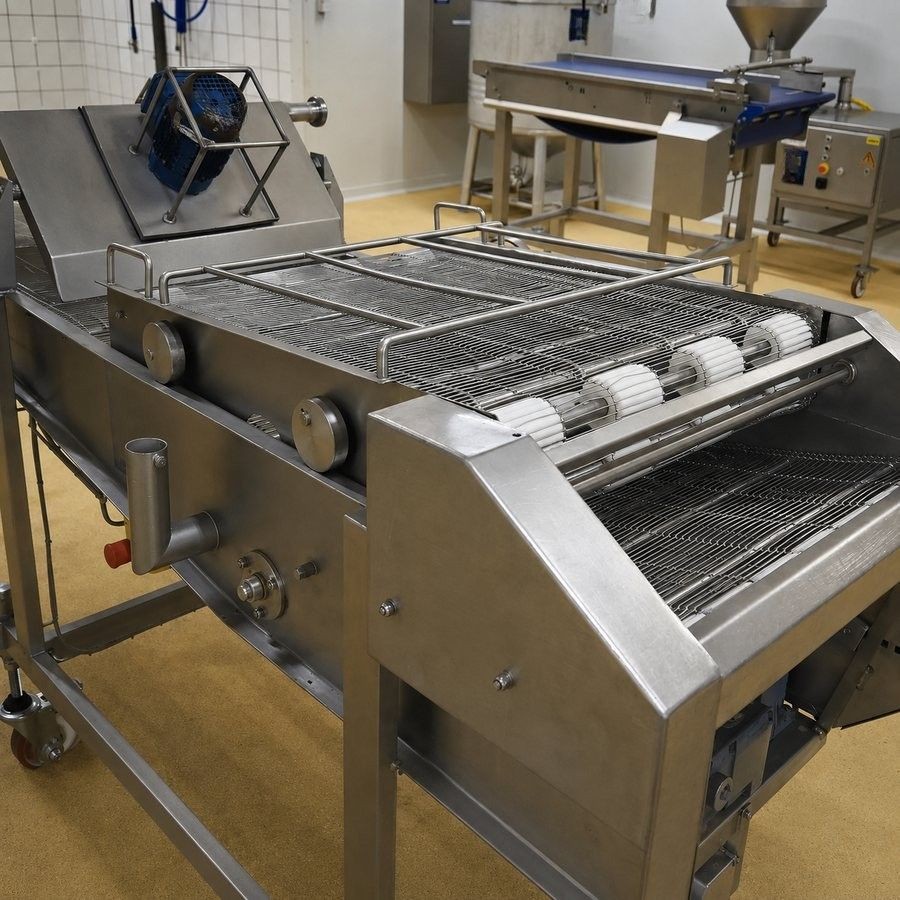

■ Stainless Steel Mesh Belt: 600 mm wide belt facilitating optimal runoff of excess batter while preserving product shape.
■ Plant Mobility & Flexibility: Stainless steel tubular frame supported by 4 heavy-duty locking castors for quick line reconfiguration.
■ Fast Sanitation: Dip tank and contact parts designed for straightforward tool-less disassembly and thorough washdown.

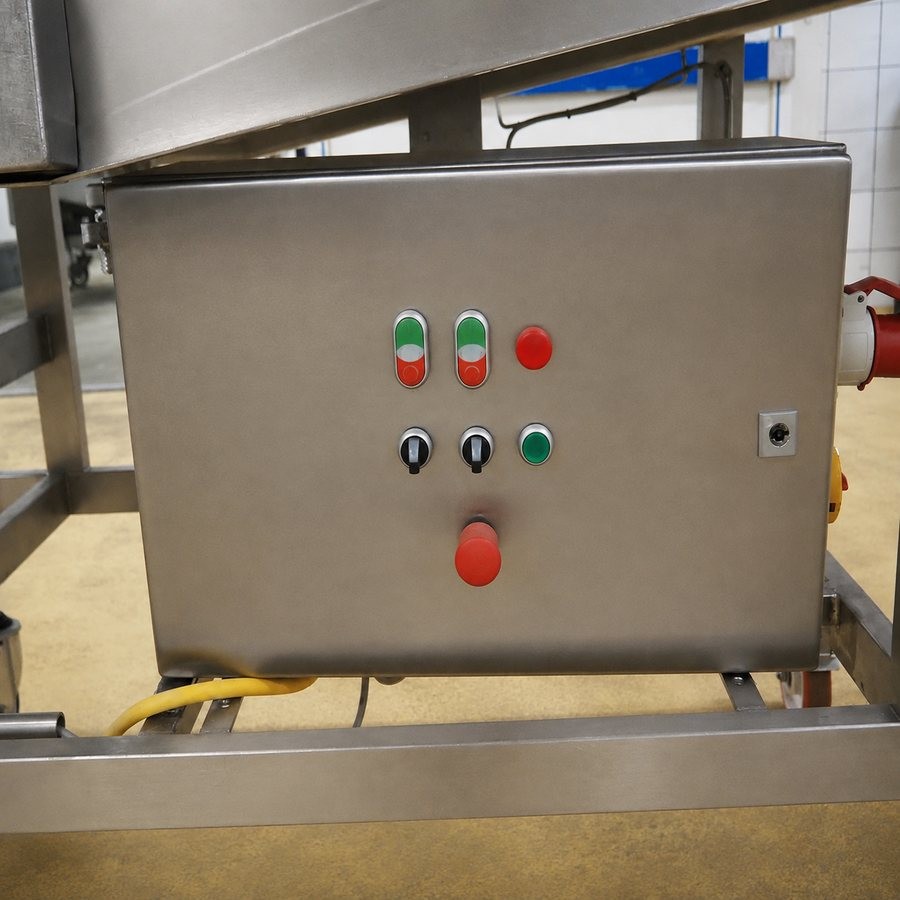

■ Integrated Control Enclosure: Watertight stainless steel IP65 control box with start/stop buttons and emergency stop.

Industrial Applications

✓ Dipping meat portions (chicken nuggets, breast fillets, schnitzels, formed patties).
✓ Coating fish and seafood specialties (fish fingers, squid rings, shrimp, battered fillets).
✓ Vegetable tempura processing (onion rings, breaded vegetables, mushrooms).
✓ Essential wet-coating stage prior to belt breading or continuous frying.

Technical Specifications

ParameterSpecification
Mecalsa Reference 2345 (ID No. 2345)
Manufacturer Koppens Machinefabriek B.V.
Model / Type TD 600 (Tempura Dipper)
Condition Used / Secondhand inspected
Electrical supply 380 V — 3 Phase
Frequency 50 Hz
Installed power 0.5 kW
Machine weight 200 kg
Conveyor belt type Stainless steel wire mesh belt (s/s)
Belt width 600 mm
Total dimensions (L x W x H) 2500 x 800 x 1450 mm
Coating system Continuous immersion in tempura/batter tank
Construction material Food-grade stainless steel
Mobility Mobile chassis on 4 heavy-duty swivel castors with brakes
