Tetra Laval Koppens BV forming, battering and double breading line - 400 mm

2346

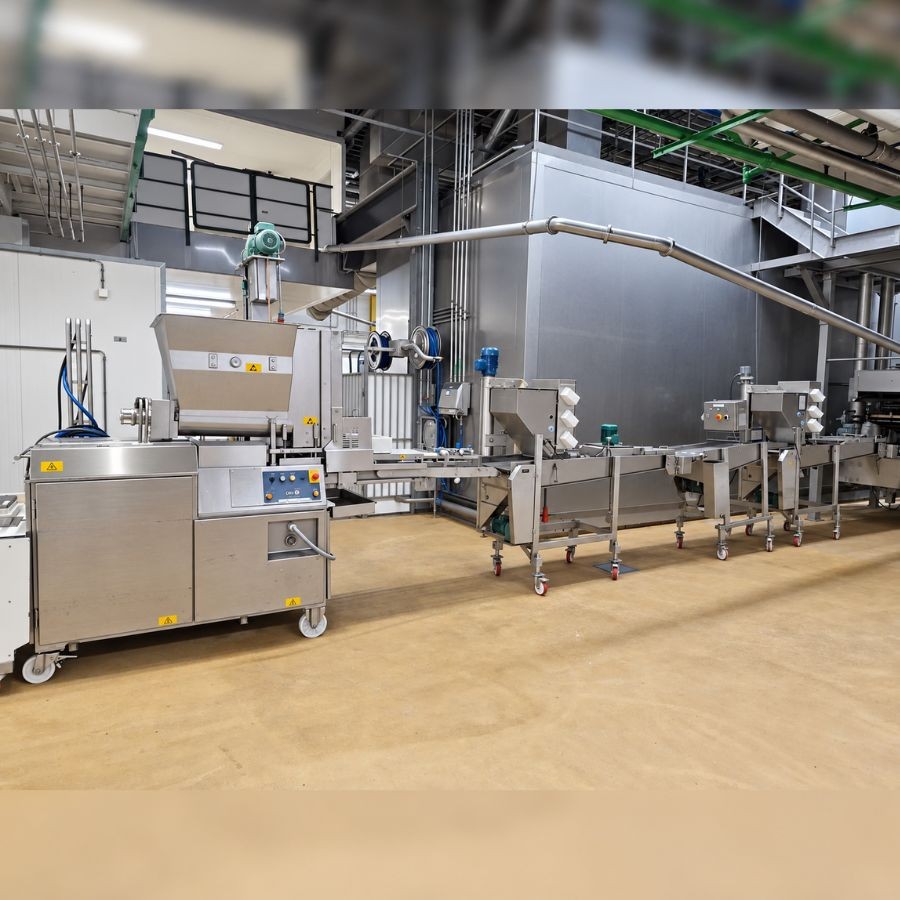

Complete used industrial line for forming, battering, and double breading of meat, fish, and vegetable products, featuring a 400 mm working width. Manufactured by the renowned brand Tetra Laval Koppens BV, this modular line automates the entire process from raw material feeding to final breading with exceptional accuracy and consistency.

Continuous processing sequence:
1. Raw material bin (200 L) → 2. Bin lifter (250 kg) → 3. VM 400 HSE plate forming machine → 4. First Breading machine (pre-dust/base layer) → 5. Battering/Coating unit (liquid batter adhesion) → 6. Second Breading machine (crispy finish).

Tetra Laval Koppens BV forming, battering and double breading line - 400 mm

Ver productos

Tetra Laval Koppens BV Industrial Forming and Double Breading Line (400 mm)

High-productivity continuous line designed for processing and producing formed products with a double-coating finish (nuggets, burgers, fish portions, schnitzels, croquettes, and plant-based alternatives). Designed by Tetra Laval Food Koppens B.V., a global benchmark in meat and food processing, this line guarantees precise portioning, a uniform batter coat, and a double breading with excellent adhesion and a superior crunchy texture.

Advantages of the Double Breading Process

■ Optimum moisture retention: The first breading stage seals the surface of the molded product, allowing the battering machine to apply a uniform coat without losing internal moisture.
■ Premium crunchy or artisanal finish: Allows combining different grain sizes (fine flour or pre-dust in the first stage and coarse breadcrumbs or panko in the second).
■ Product savings and uniformity: Homogeneous distribution of the coating without clumping or uncoated areas.

Production Sequence and Line Components (Ref. ID-2346)

StepEquipmentModel / ManufacturerReferenceTechnical Features

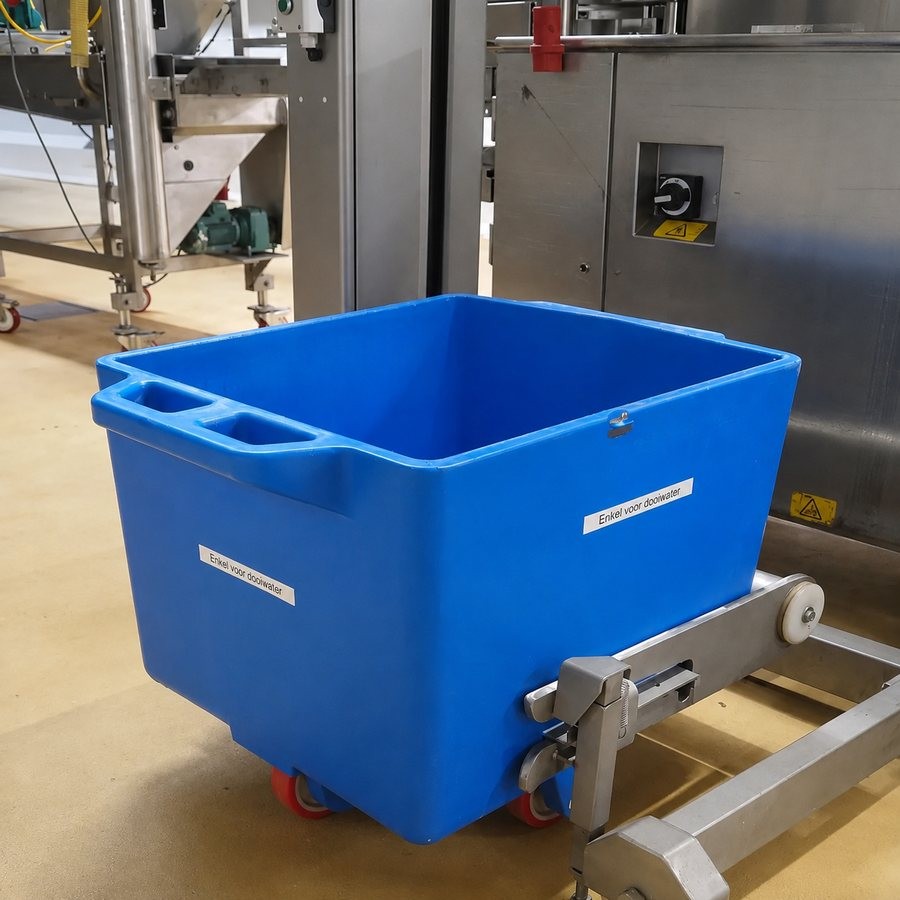

1 Meat / mass tote bin Food-grade standard ID 2346-1 200 L capacity, made of high-resistance sanitary plastic.

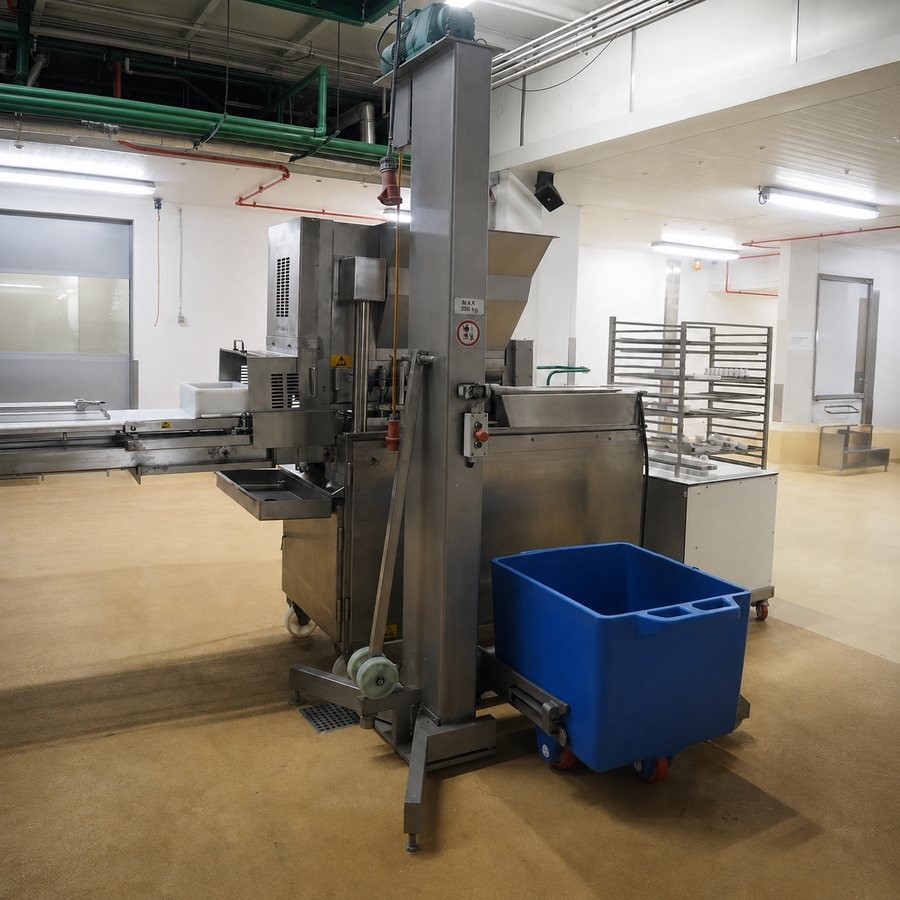

2 Mobile bin lifter Stainless Steel ID 2346-2 Maximum load capacity: 250 kg. Lifting and discharging height of 2,050 mm into the former hopper.

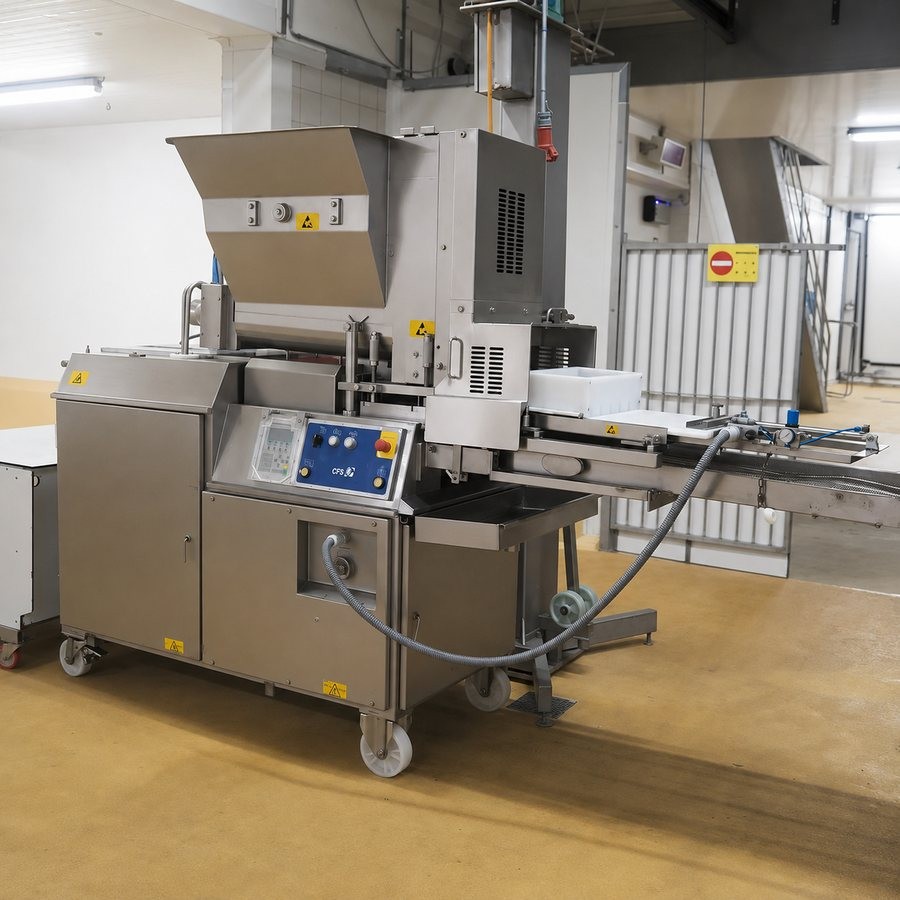

3 Mobile portion former Tetra Laval Koppens VM 400 HSE ID 2346-3 Year: 1995. Power supply: 380V. Useful width: 400 mm. High-precision volumetric molding for burgers and portions.

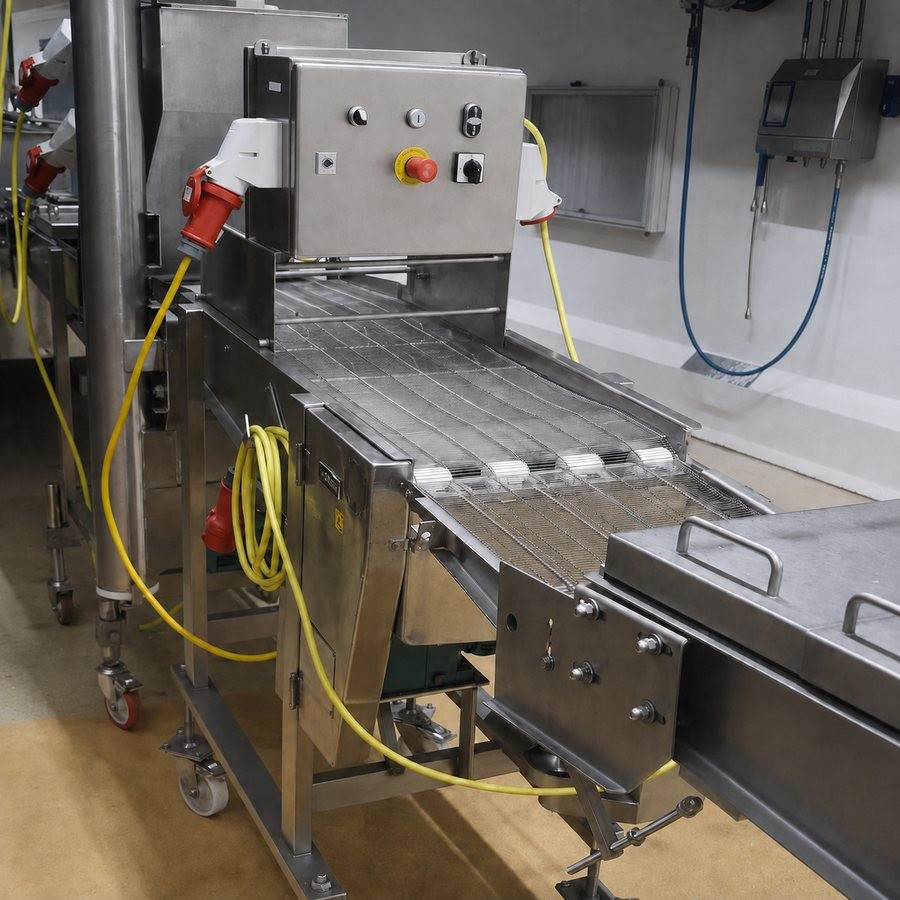

4 Mobile breader (1st step) Koppens PR 400 ID 2346-4 Useful width: 400 mm with stainless steel wire mesh belt. Application of the first bed and dry coating (pre-dusting/flouring).
5 Mobile batterer / dipper (2nd step) Koppens EPN 400 ID 2346-5 Power: 0.7 kW. Useful width: 400 mm with stainless steel wire mesh belt. Continuous dipping/coating of batter mixture.

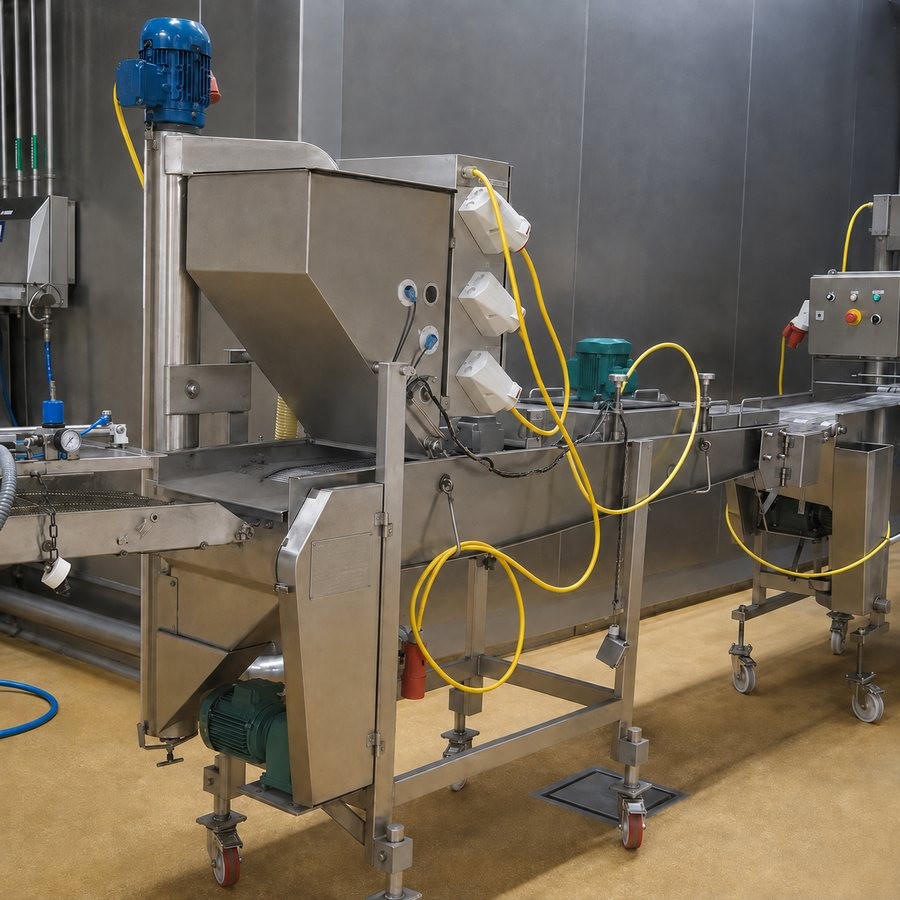

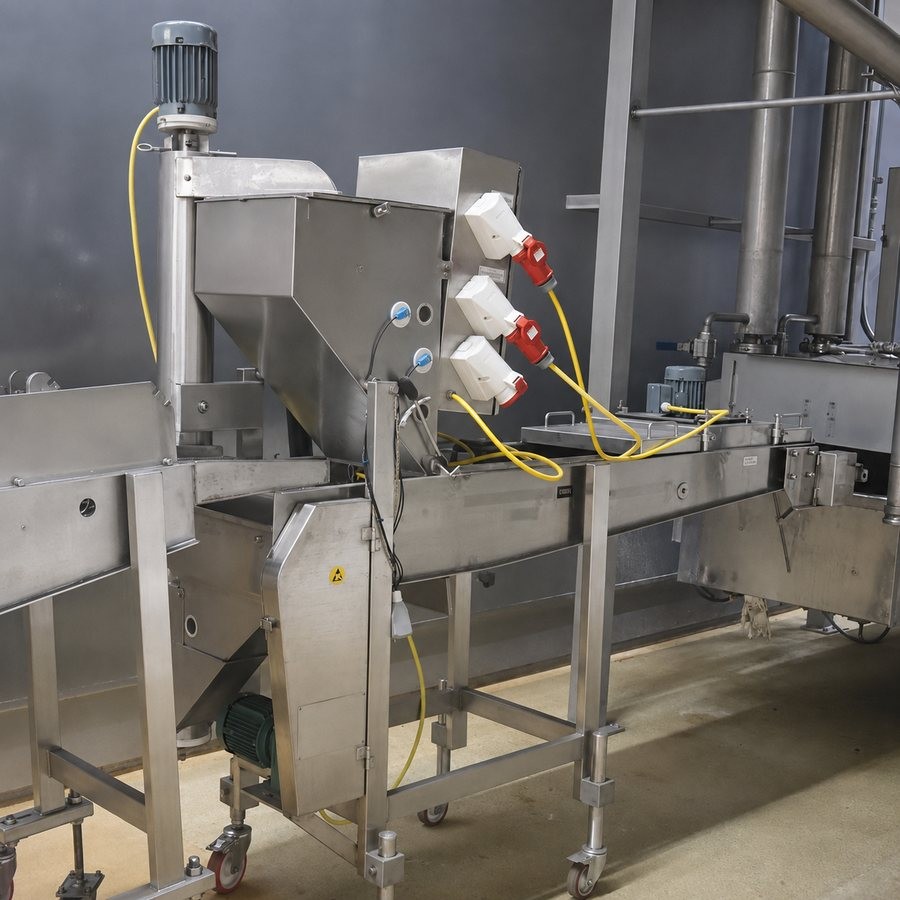

6 Mobile final breader (3rd step) Koppens EPR 400 ID 2346-6 Power: 0.9 kW. Useful width: 400 mm with stainless steel wire mesh belt. Final coating of breadcrumbs/crumb and excess air blower.

Global Technical Specifications

✓ Line Brand: Tetra Laval Koppens BV (Netherlands).
✓ Useful working width: 400 mm (direct interconnection between equipment).
✓ Construction: Stainless steel and technical plastics for the food industry.
✓ Mobility: Independent modules mounted on wheels to facilitate daily cleaning, disinfection, and maintenance (sanitary design).
✓ Condition: Used machinery, overhauled by Mecalsa's technical team.
