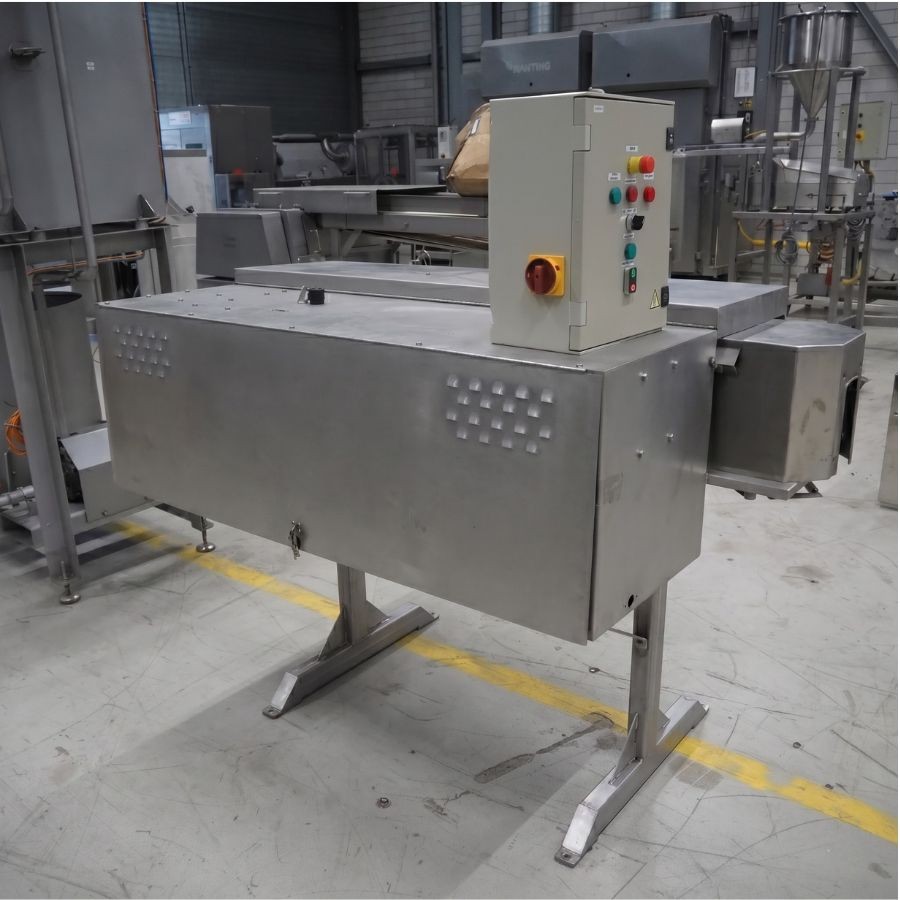

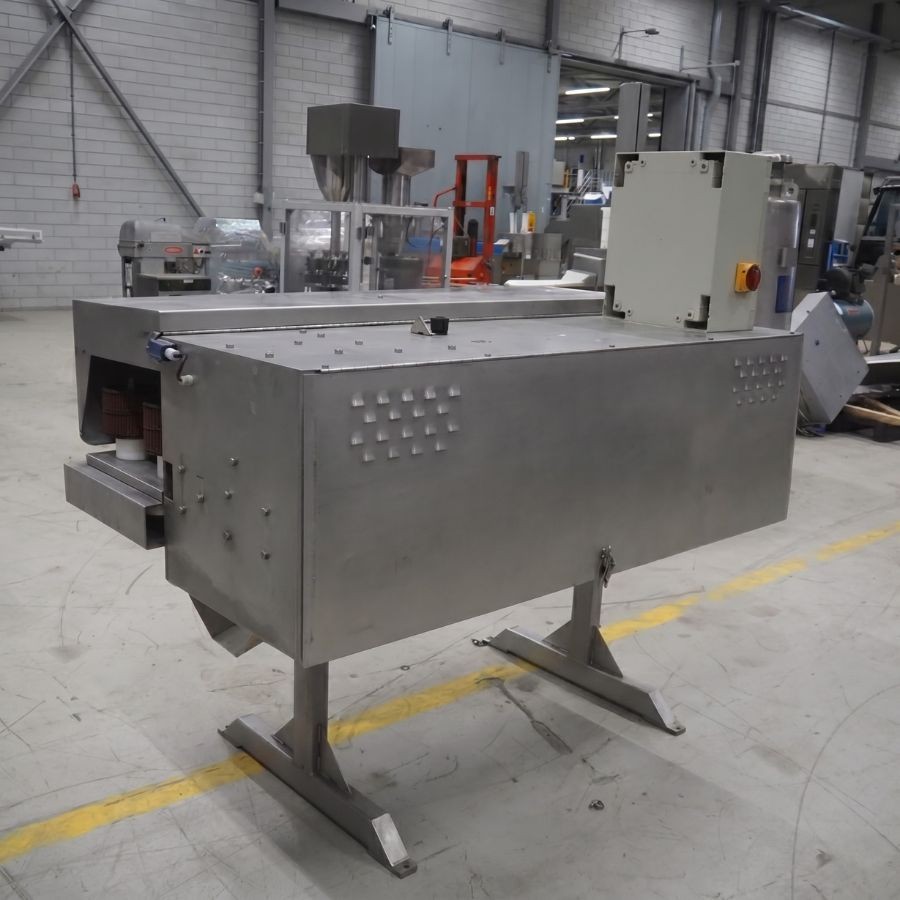

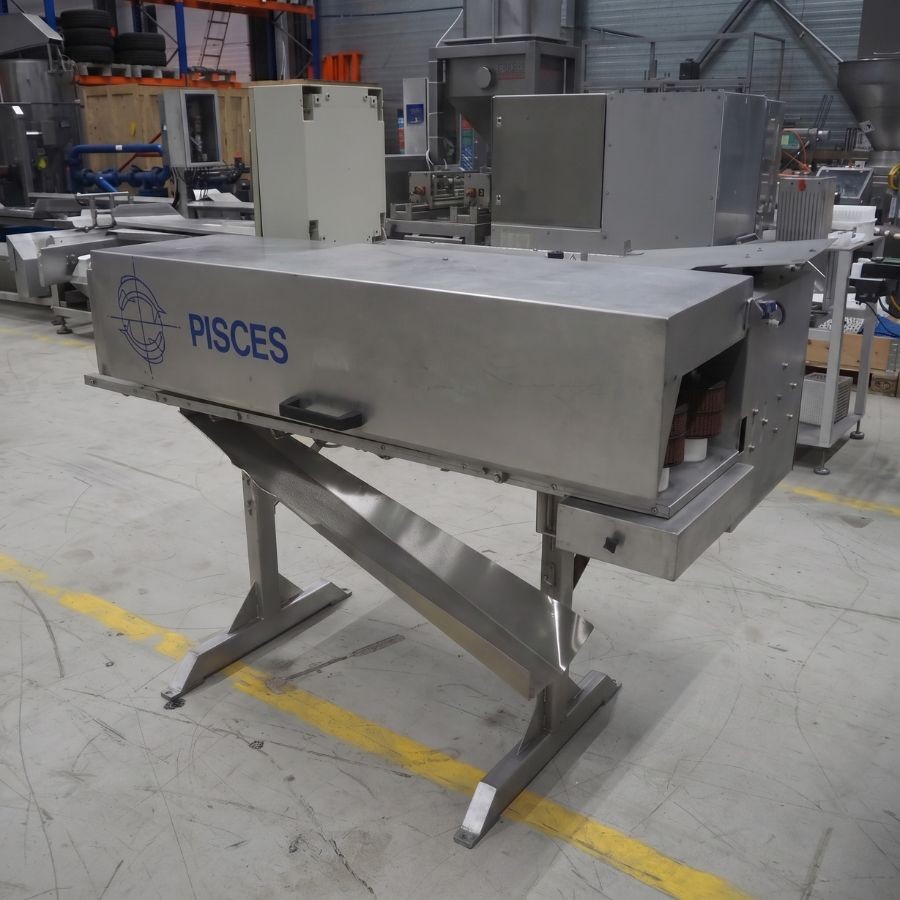

Industrial Fish Filleting Machine PISCES IND. LTD. FR-200

2337

Industrial fish filleting machine designed for the automatic production of fillets free of backbone and ribs from head-off fish with or without viscera. The Pisces FR-200 delivers high-speed continuous processing of up to 40 fish per minute, ensuring precise cutting and excellent fillet quality.

MANUFACTURER TECHNICAL DATA Pisces FR-200 technical datasheet

Industrial Fish Filleting Machine PISCES IND. LTD. FR-200

Ver productos

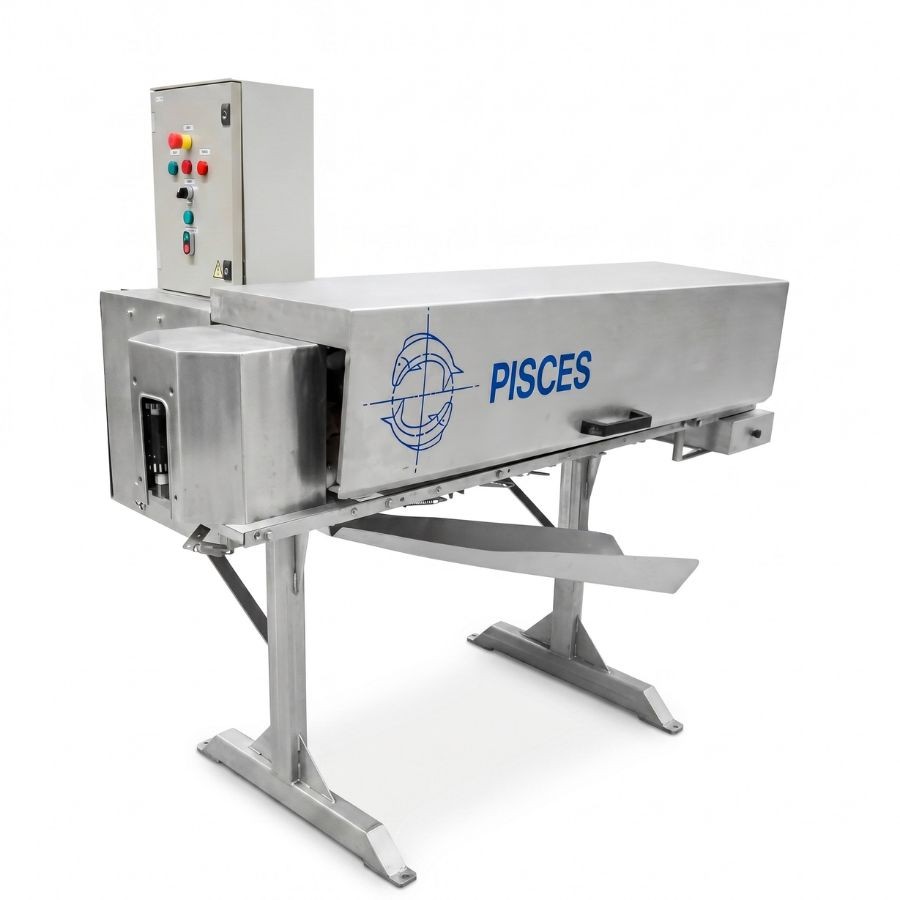

Pisces FR-200 Industrial Fish Filleting Machine

High-performance automatic fish filleting solution

The Pisces FR-200 is a high-speed industrial filleting machine designed for continuous production of fish fillets free from backbone and ribs. It is ideal for processing plants requiring high productivity and consistent cutting quality.

The machine processes head-off fish, with or without viscera, performing filleting, gutting, backbone removal, and rib removal in a single pass. Its unique positioning system based on the fish’s internal bone structure allows processing of different species with minimal adjustments.

Operating principle

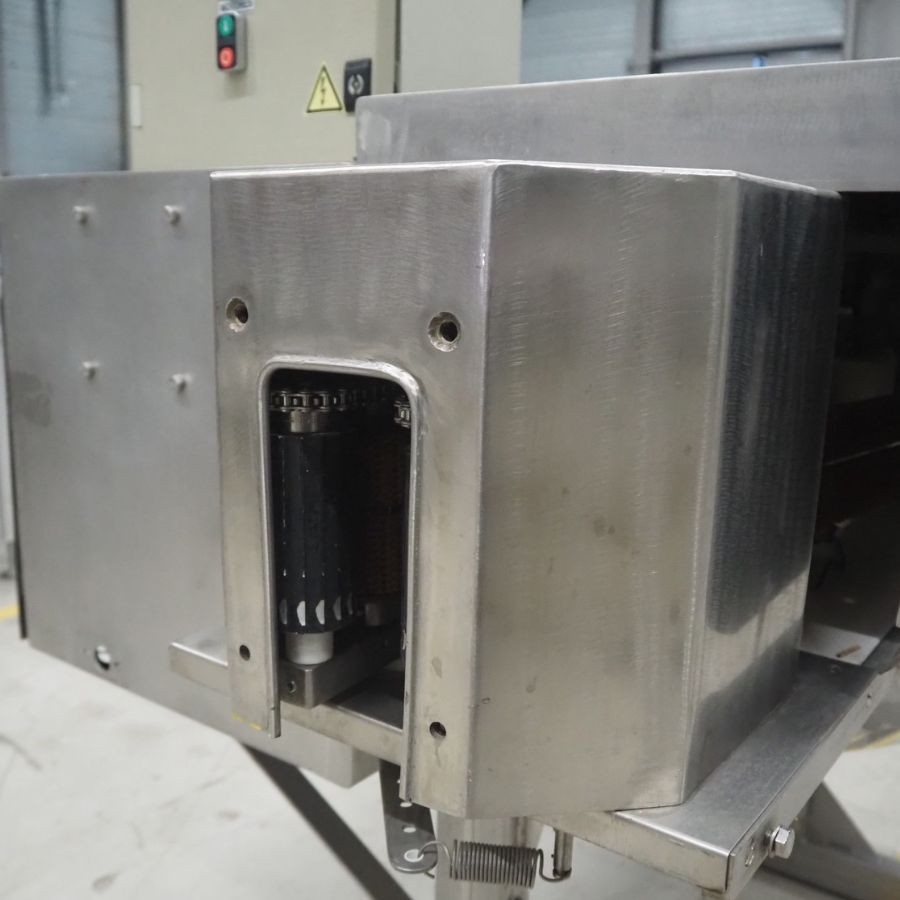

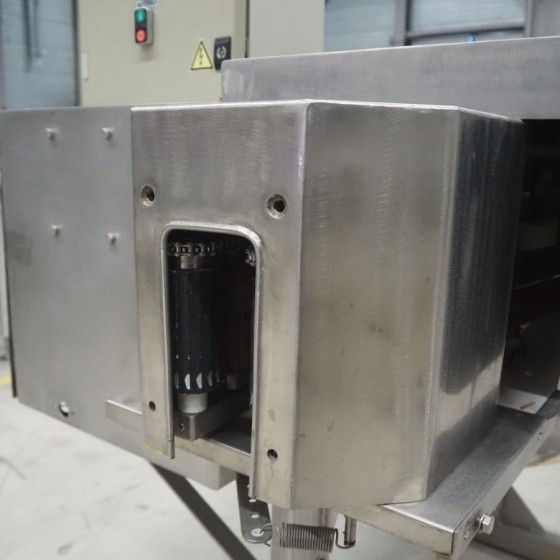

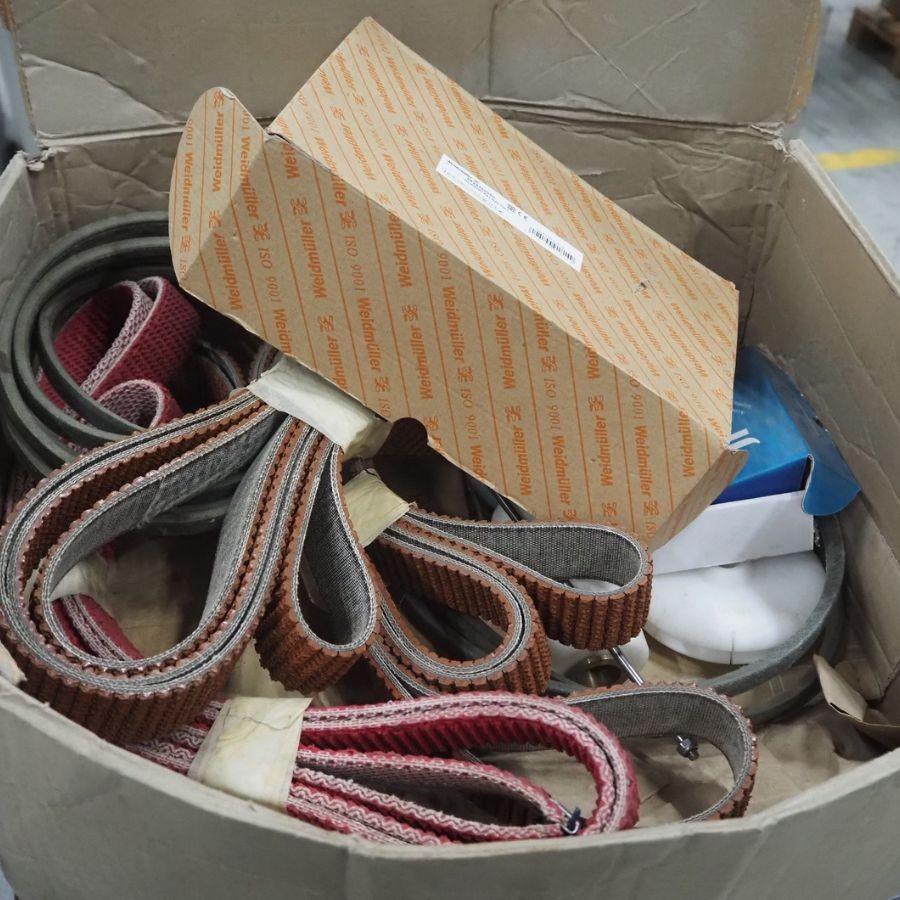

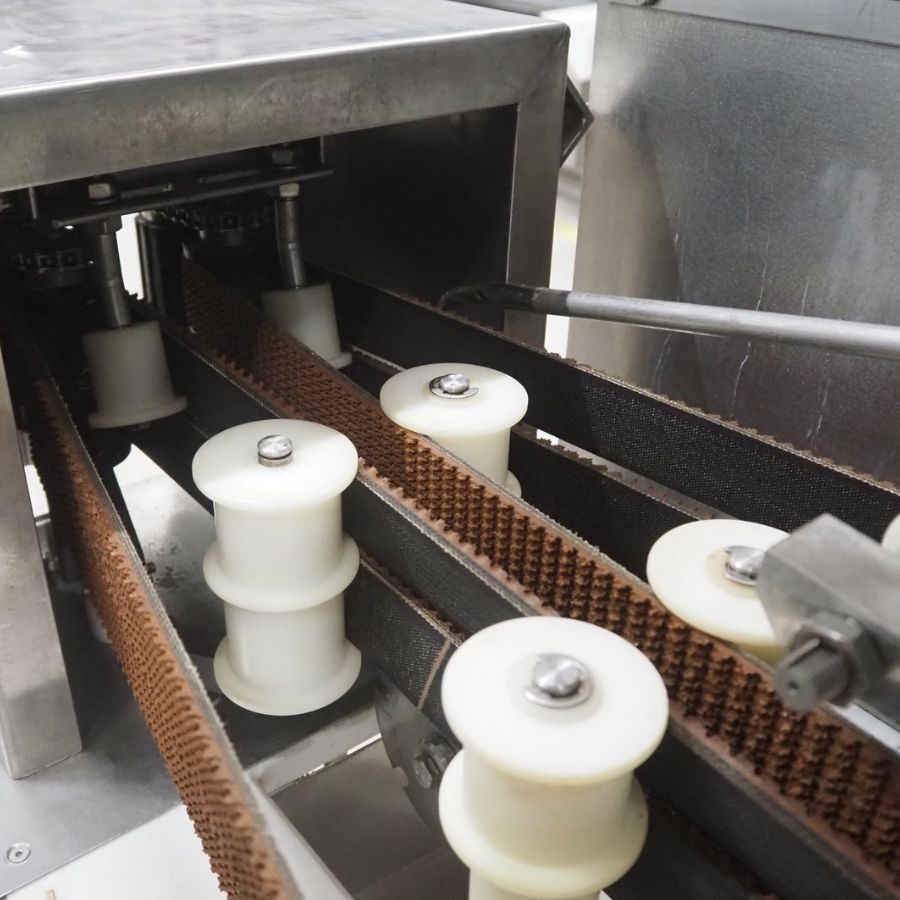

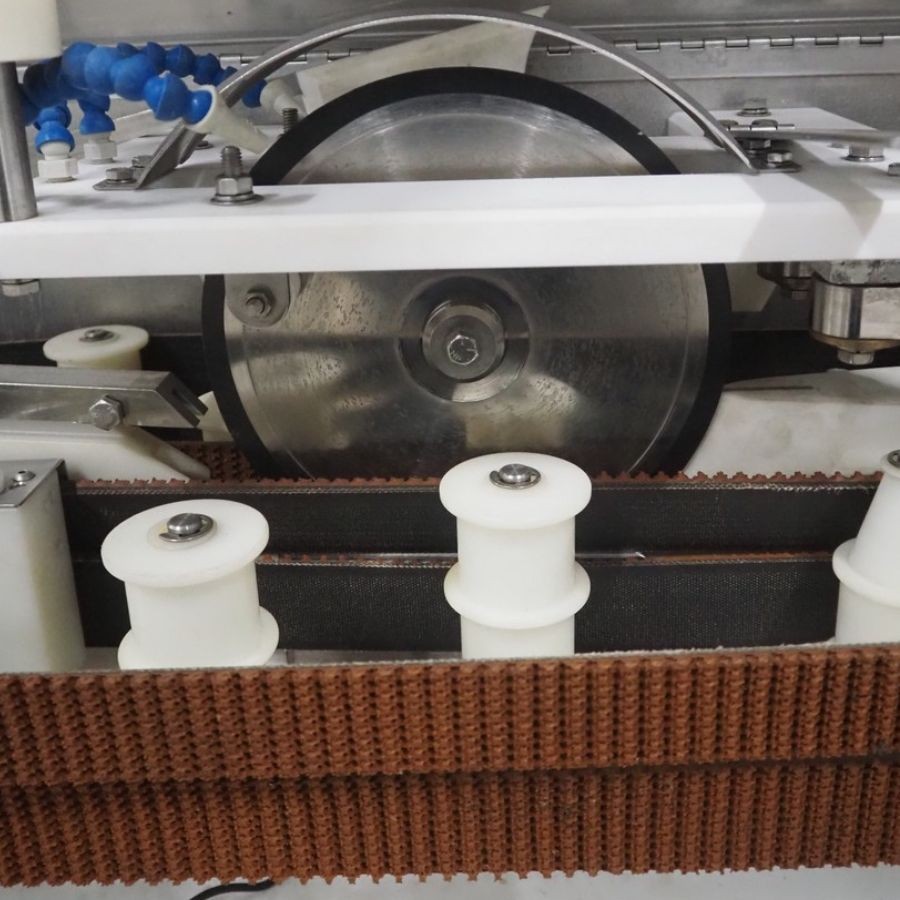

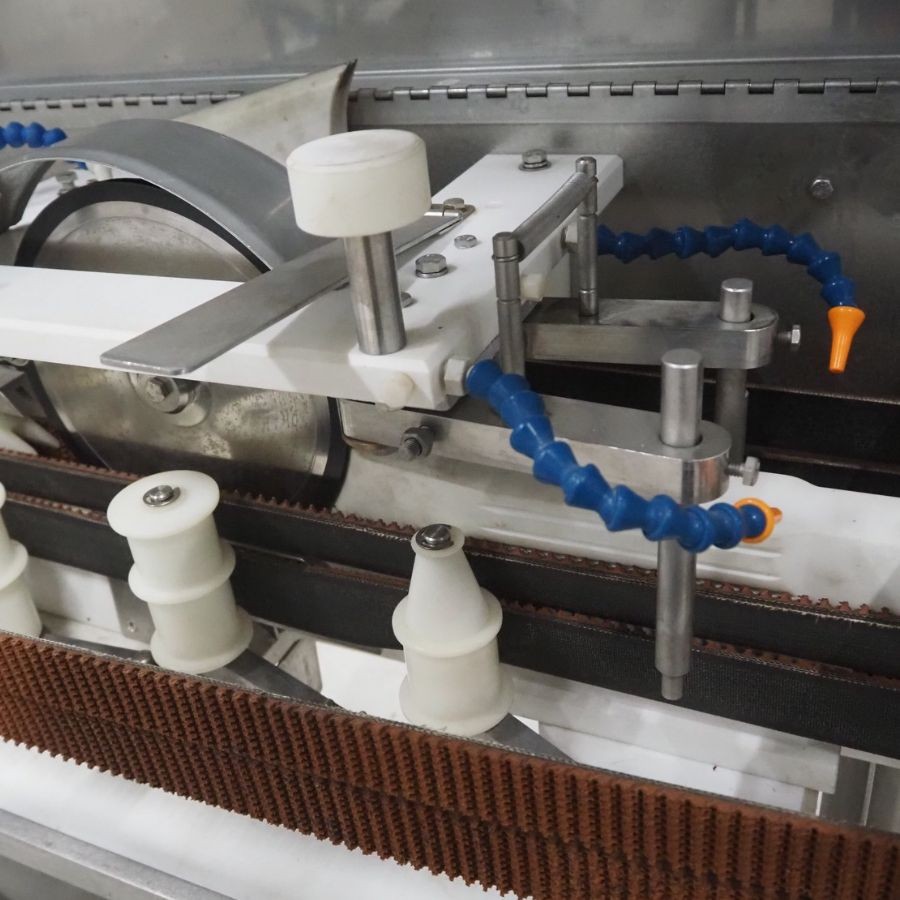

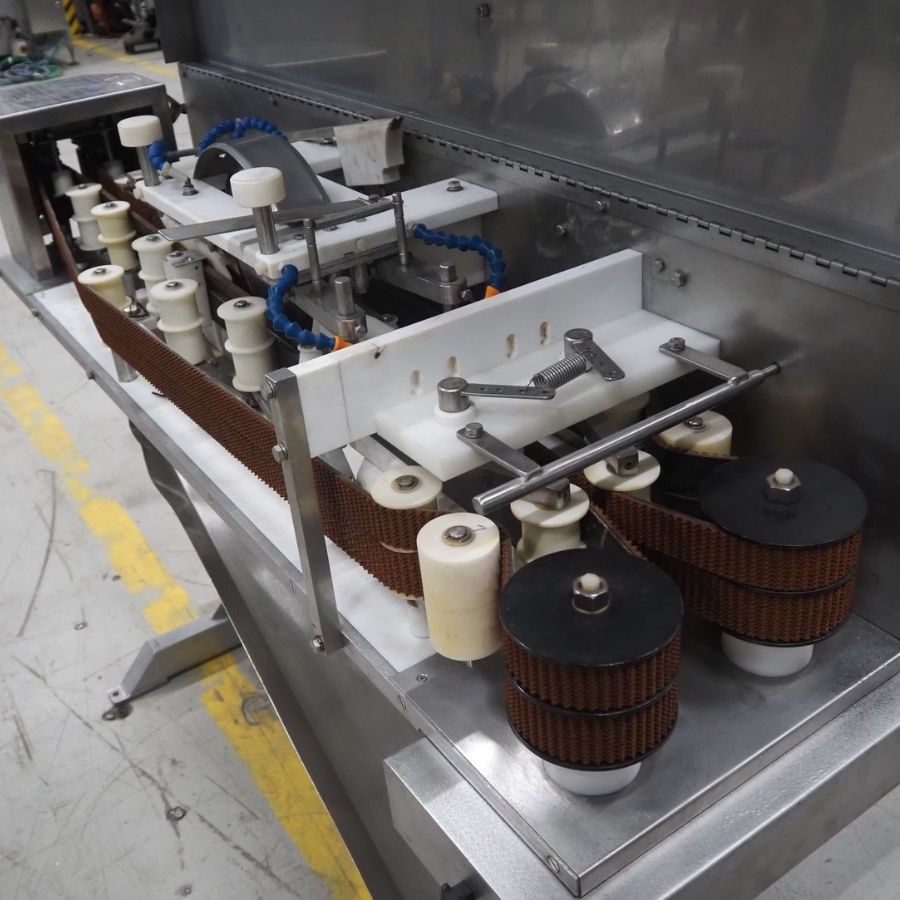

The operator places the fish into the feeding system, where it is transported by rollers and drive belts toward the cutting blades. The process includes belly cutting, backbone removal, and rib extraction, with waste being discharged and clean fillets delivered onto the output conveyor.

Main technical features

■ Model: FR-200
■ Working width: 45 mm
■ Production capacity: up to 40 fish/min
■ Fish size range: 0.34 – 1.8 kg
■ Water consumption: 12 L/min
■ Power: 3 kW
■ Voltage: 220 V (depending on configuration)
■ Operators: 1
■ Dimensions: 1750 x 950 x 1650 mm

Advantages

✓ High production speed
✓ Automatic backbone and rib removal
✓ Single-pass processing
✓ Low operating cost
✓ Easy maintenance

The Pisces FR-200 is an efficient solution for fish processing plants looking to improve productivity, fillet quality, and operational efficiency.
