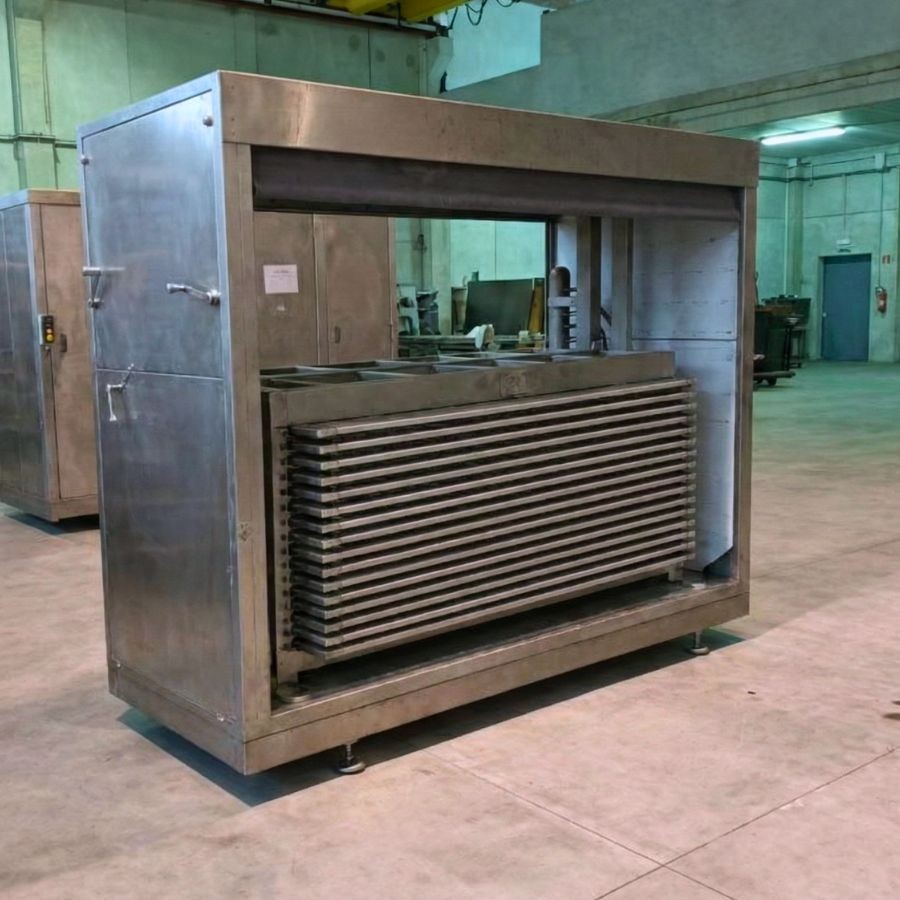

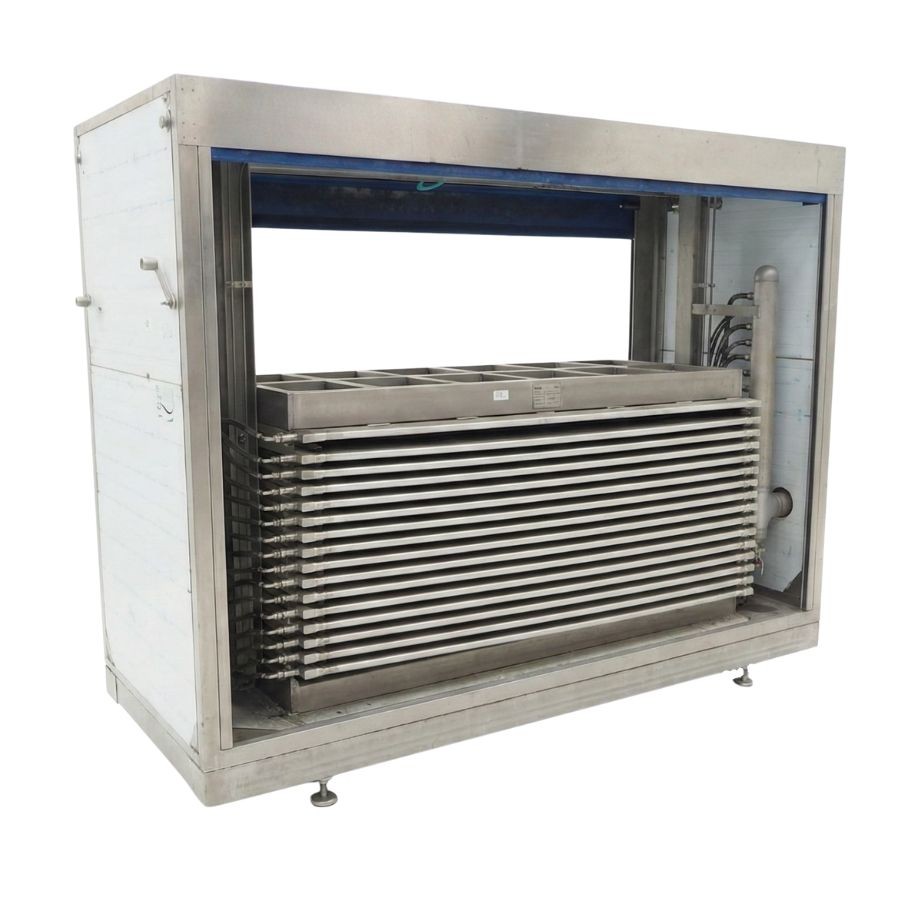

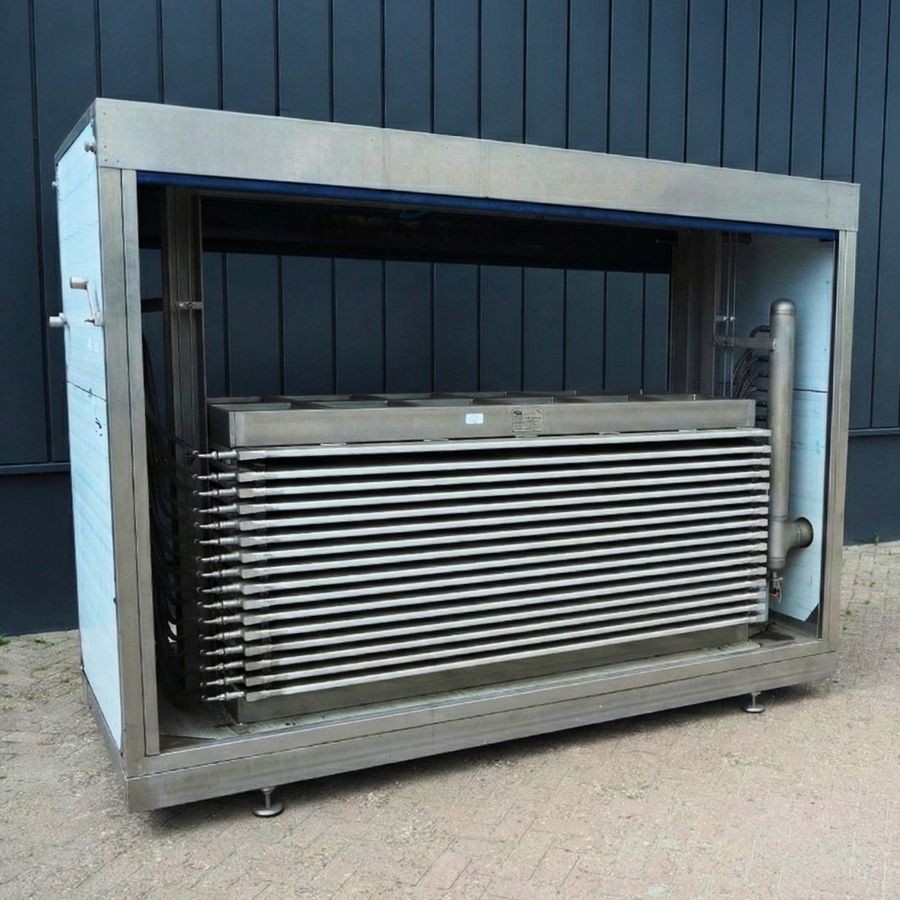

A.H. horizontal plate freezer

Horizontal plate freezer designed for industrial freezing processes, particularly suitable for food products requiring fast, uniform and controlled freezing. This equipment offers a large effective freezing surface and a robust construction, ideal for demanding production environments.

General equipment data

• Manufacturer: A.H.
• Model: horizontal plate freezer
• Serial number: 609
• Year of manufacture: 09/2015

Technical specifications

• Power supply: 400 V / 3 Ph / 50 Hz
• Working pressure: 7 / 10 bar
• Temperature range: -35 / +35 °C

Equipment dimensions

• Overall dimensions: 3000 x 1300 x 2300 mm
• External width: 2220 mm
• Internal usable width: 2045 mm
• Length / depth: 1200 mm

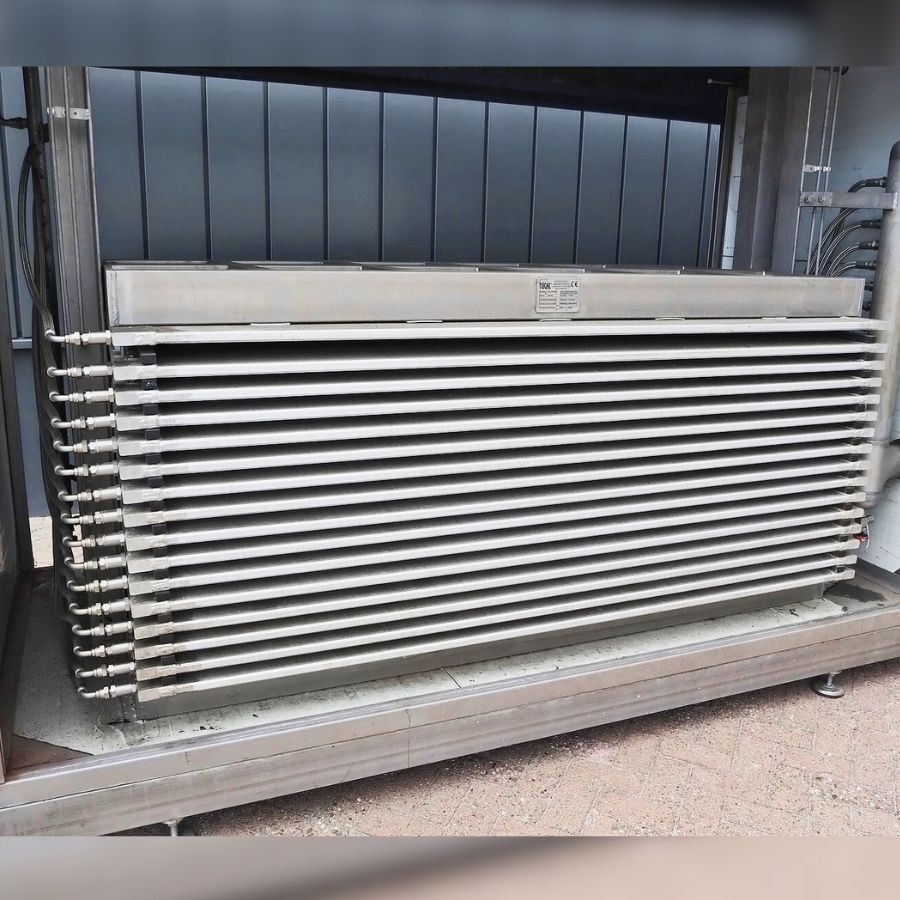

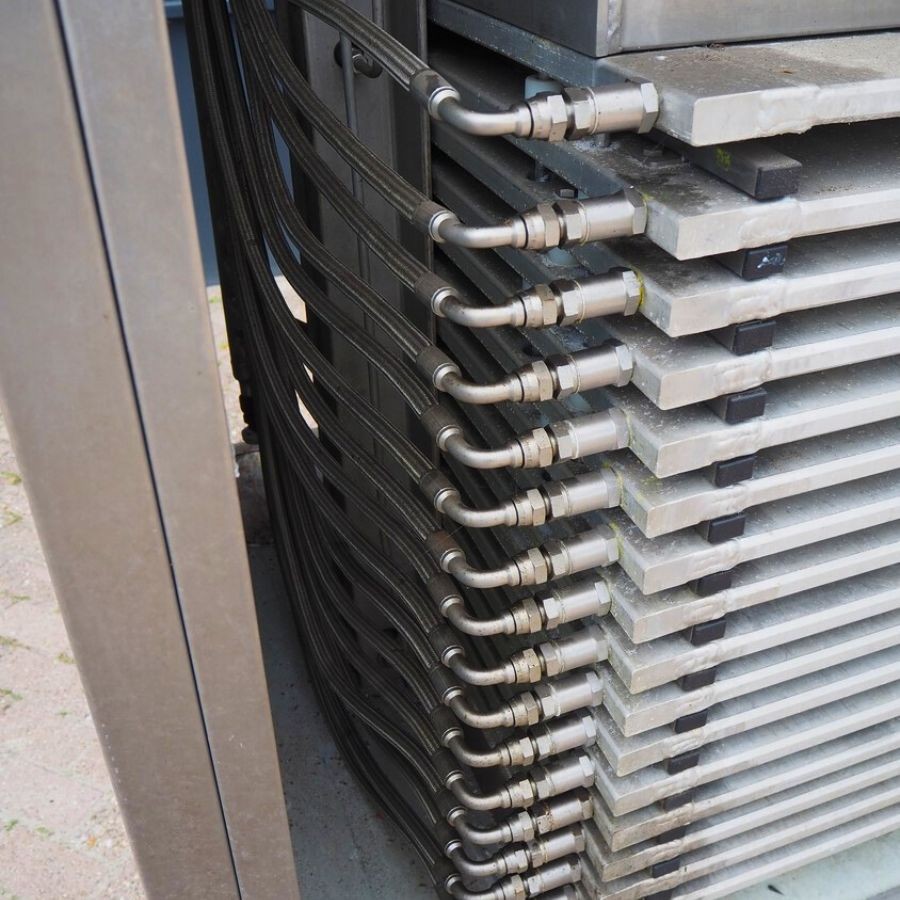

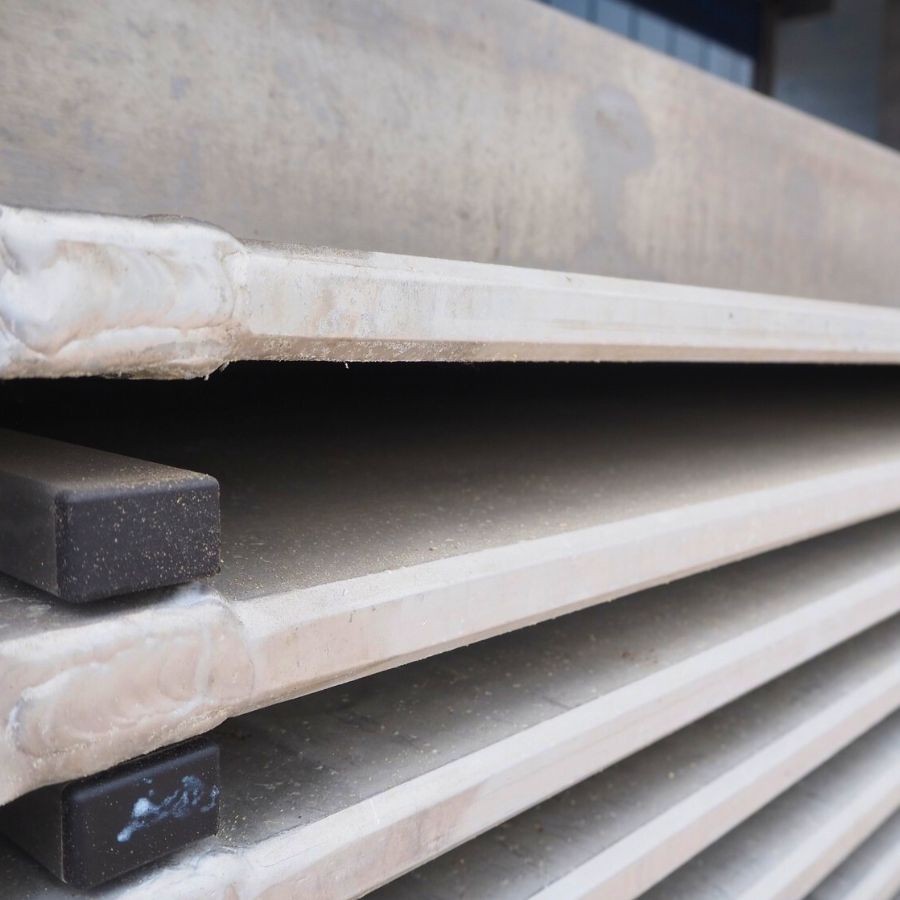

Plate freezing system

• Number of stations: 15
• Usable area per plate: 2.045 x 1.200 mm (2.454 m²)
• Total freezing area: 36.81 m²

The horizontal plate system ensures optimal contact with the product, providing efficient heat transfer and uniform freezing. This type of freezer is especially suitable for fish blocks, meat products and other foods requiring block freezing.
