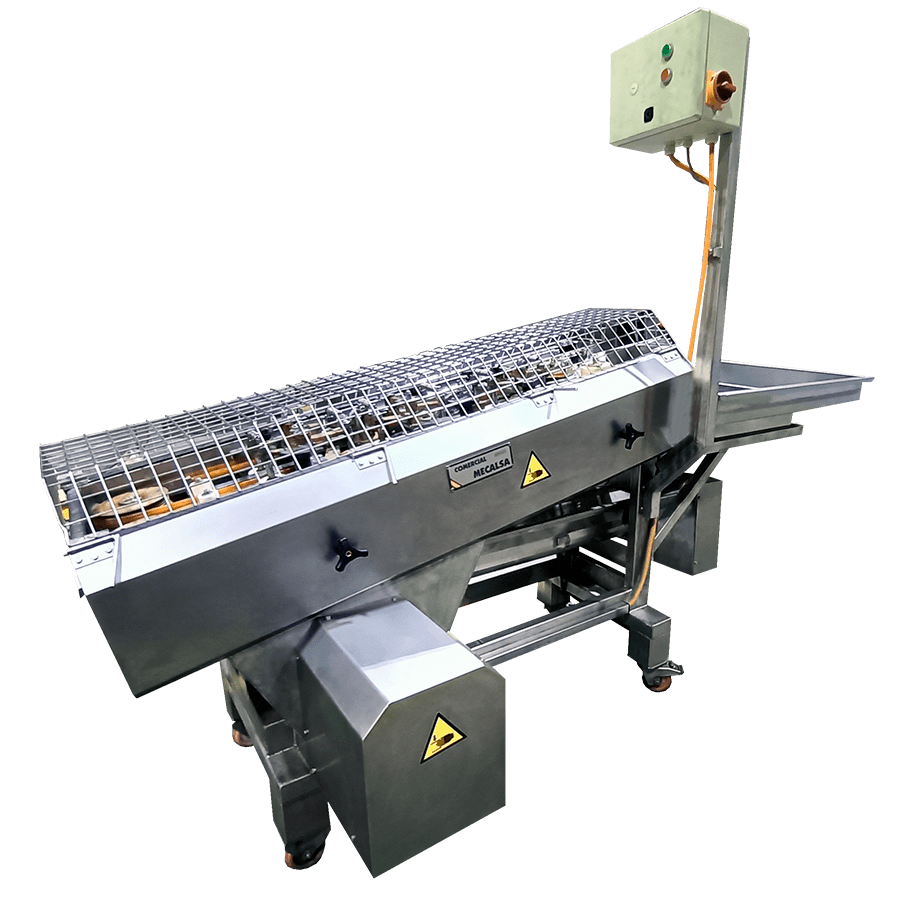

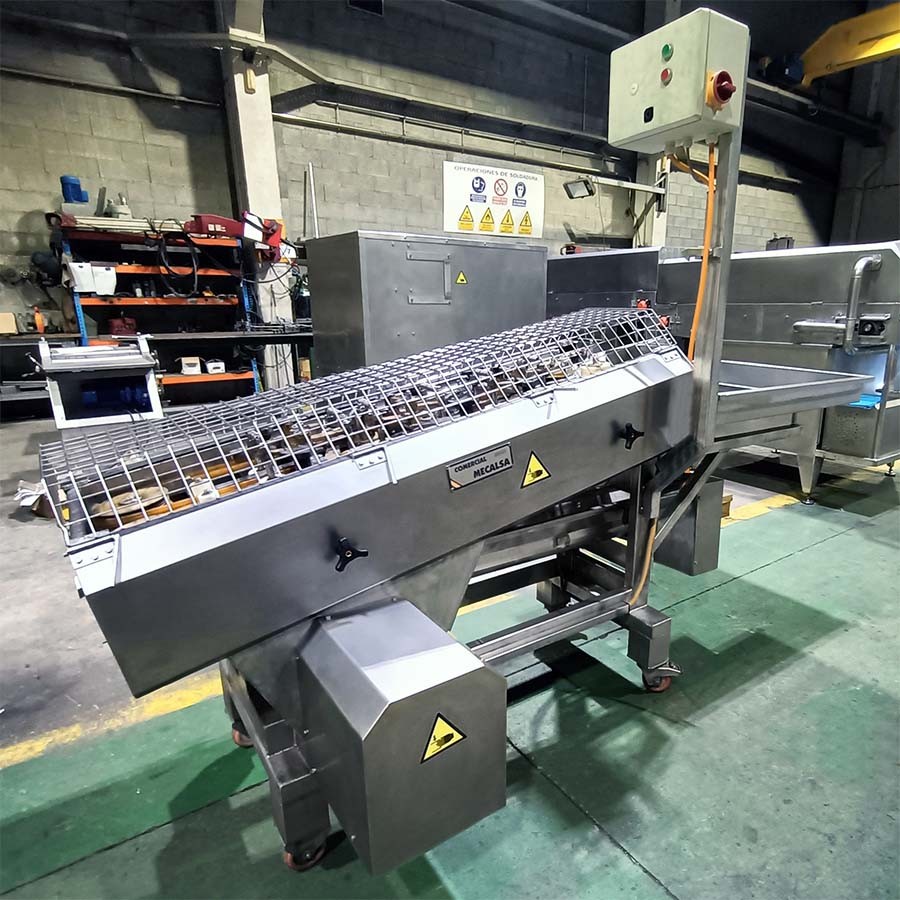

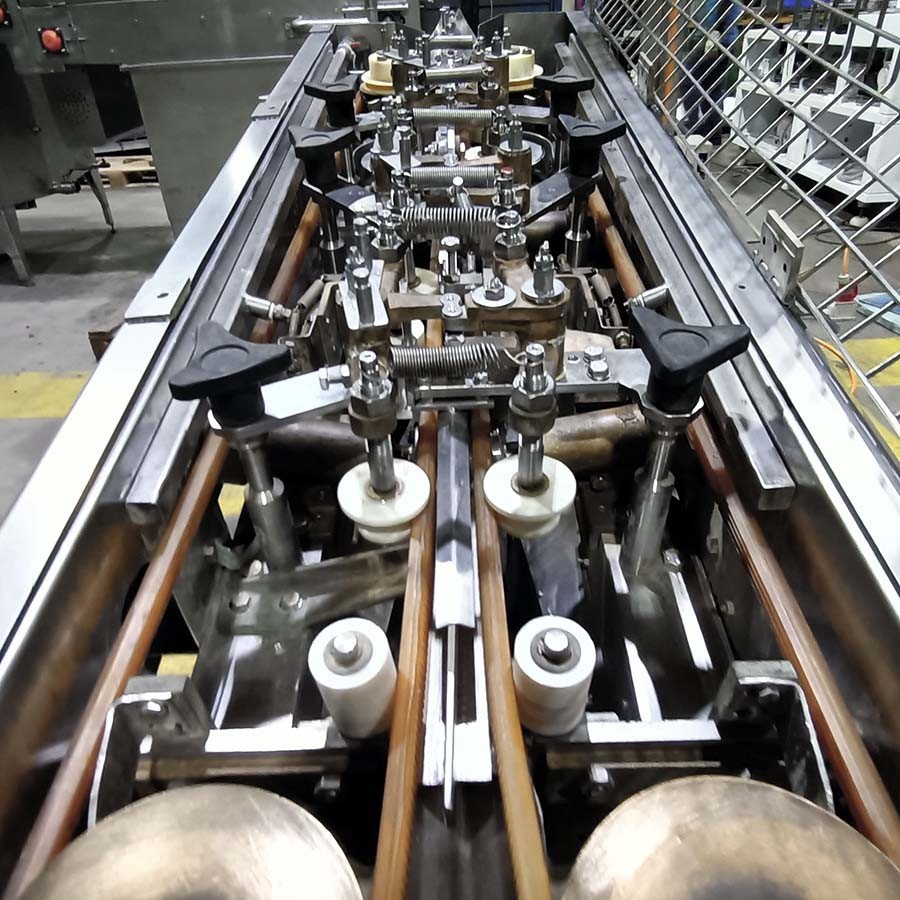

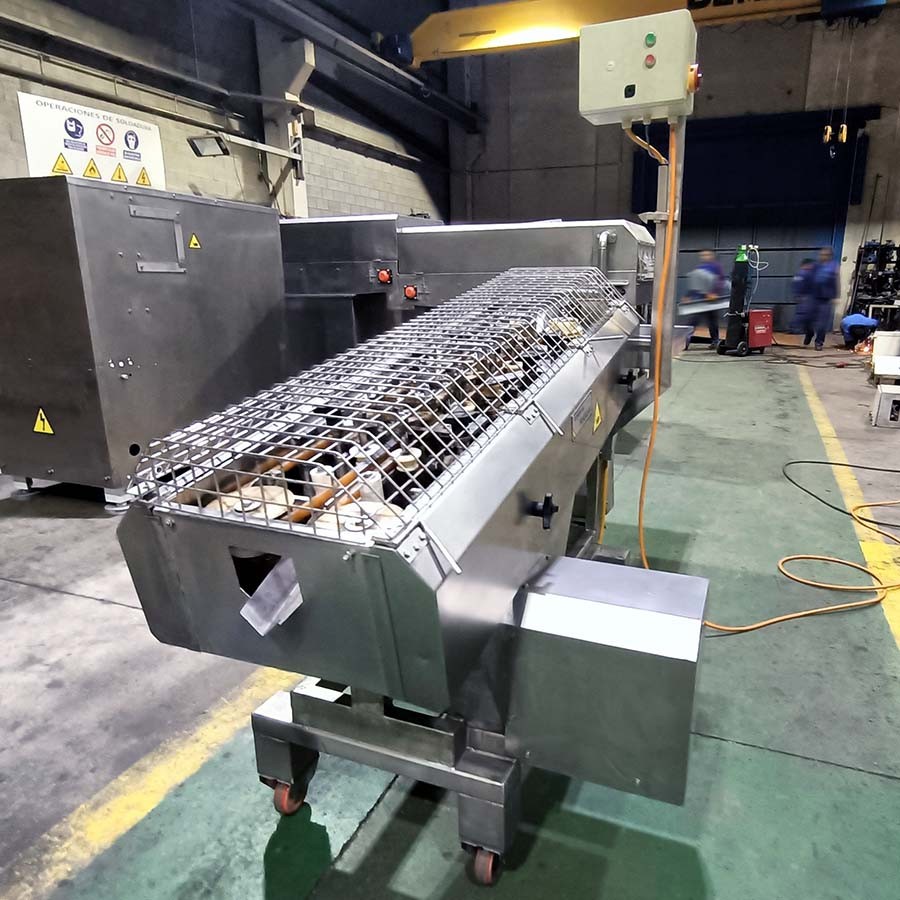

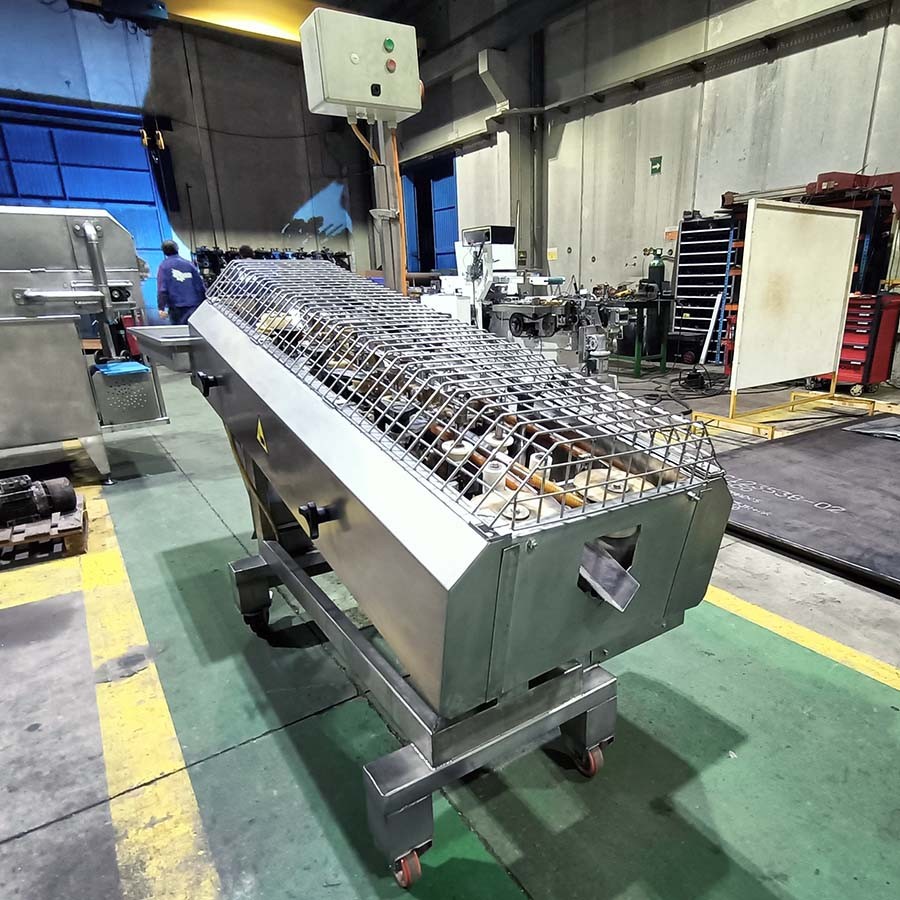

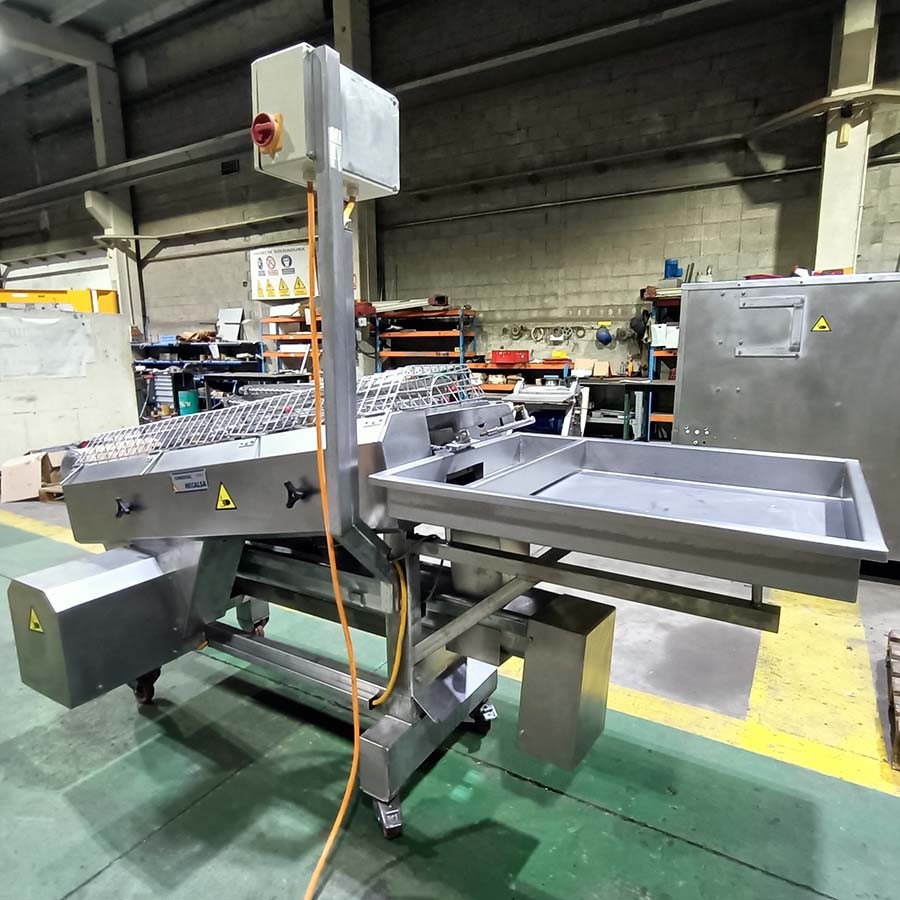

Filleting machine for mackerel, VMK, Nº  ID-2294

Belt width:70 mm

Power supply: 220/380 V, 50/60 Hz

Total dimensions: 2360 x 800 x 1680 mm

Filleting machine for Sardine, Herring, Blue whiting, Baader type: 134,  (2 UNITS IN STOCK) Nº  ID  2134, ID 2136

Power supply: 380 V, 50 Hz, 12,0 A, 2 kW, 3 Ph

Dimensions: 3000 x 2100 x 1200 mm

Weight: 450 Kg

MANUFACTURER TECHNICAL DATA

Can be combined with Automatic feeder for sardine and herring, Baader type: 478. See complete line HERE

Filleting machine Baader 35 (single or butterfly fillet) Nº ID-1999

The BAADER 35 can process herring, spiced herring, salt herring from 20-40cm (75-450g), mackerel and silver smelt 24-40cm (130-600g), blue whiting 22-40cm (75-350g) as well as trout 25-38cm (160-600g).

Machine number: 10-1363-0035

Year: 1992

Throughput rate: 160-250 pieces/min

Voltage/Power:  380 V, 3 Ph, 50 Hz, 11 A

Dimensions aprox: 3950 x 2600 x 1550 mm

Weight: 835 Kg

MANUFACTURER TECHNICAL DATA

Filleting machine Baader tpye: 184, Nº ID-1885

Machine number: 10.3320 0184

Year: 1983

Power supply: 380 V, 3 Ph, 50 Hz, 11.5 kW, 22.0 A

Plastic conveyor belt width: 500 mm

Band width: (2x) 160 mm

Throughput: 24-40 pieces/min

Water consumption: 25 l/min

Weight: 2.500 kg

Dimensions: 5400 x 1300 x 1450 mm

MANUFACTURER TECHNICAL DATA
